DVI To Fiber Optic Extender

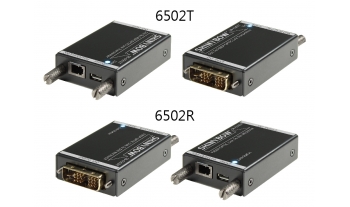

SB-6502T / SB-6502R
DVI To Fiber Optic Extender
DVI To Fiber Optic Transmitter
Input : 1x DVI
Output : 1x Fiber Optic
DVI To Fiber Optic Receiver
Input : 1x Fiber Optic
Output : 1x DVI


  • Introduction
  • Features
  • Specifications
  • 1. DVI over Optical Fiber Extender
    2. Extend DVI up to 1000ft (300M)
    3. Support video resolution up to 1920x1200
    4. Available single-strand multimode LC fiber optic cable
    5. Support EDID, HDCP and HDCP over DLI, no more EDID learning
    6. Proven optical module reliability: TELCORDIA GR-468
    7. Signal re-clocking, no TMDS extension to minimize skew
    8. Secure data without RFI/EMI emission or loss of video quality
    9. Complies with class 1M laser eye safety in compliance with FDA/CDRH and IEC 60825-1
    10. Support DDWG standard for DVI compliant monitors
  • Type of Extender Fiber Transmitter for DVI signal over Optical Fiber Cable
    Input Signals DVI-D
    Video Support 1920 x 1200 / 1080P @ 60Hz, resolution allowed by HDCP V1.2 up to 165MHz pixel clock
    Dynamic EDID Plug & Play, no need to learn
    Fiber Connector LC Receptacle
    Transfer distance Multi Mode, up to 1000 ft
    Operating Temperature 0°C to + 50°C
    Storage Temperature -20°C to + 85°C
    Humidity 0 to 90% RH (non-condensing)
    Safety Approvals CE
    Dimension (WxDxH) 2.19" x 1.63" x 0.63" (55.6mm x 41.5mm x 16mm)
    Weight 0.1 kg / 0.22 lb
    Operation Voltage +5VDC
    Power Supply Power Input +5VDC, 0.85A
    (Universal Type 50/60Hz, 100~240 VAC)
