Inputs   : 1x Composite Video, 1x Component Video, 1x VGA & 1x HDMI

Outputs : 1x Composite Video, 1x VGA, 1x HDMI

Controls : 1x IR, 1x Rs232

  • Introduction
  • Features
  • Specifications

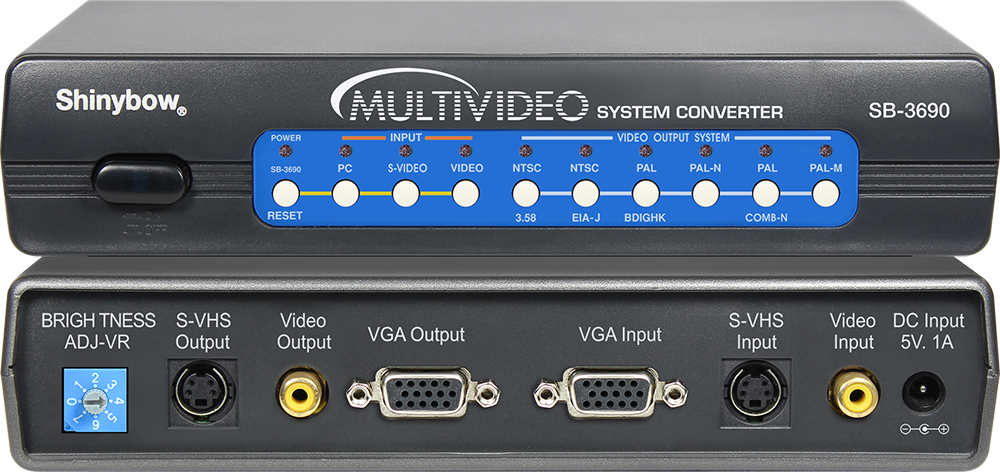

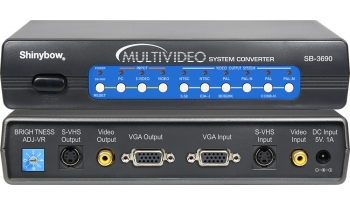

  • The SB-3690 is a high performance video graphics scaler supporting four (4) different video Input signal types to include 1xComposite Video with Audio, 1x Component Video with Audio, 1x VGA with Audio and 1x HDMI. The available Output ports 1x HDMI, 1x Composite Video and 1x VGA. ALL Output ports are active simultaneously. This scaler supports HDMI with 3D comb filter, HDMI 3D 1.3a formats and is HDCP 2.0 Compliant. The SB-3690A Auto-detects the Input video standard in the form of NTSC,PAL and SECAM systems and converts to High Definition RGB digital HD signal. The scaler supports full HDTV resolution data rates enabling 480i/p, 576i/P, 720p or 1080i/p-60Hz formats, higher DVI resolution (1920x1200 ), HDMI 1080p-60Hz which is ideal for high definition 3DTV, HDTV, Plasma display or other monitor applications. Control is provided via front panel buttons with LED display, RS232 or wireless IR remote control (included).

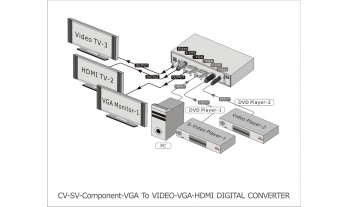

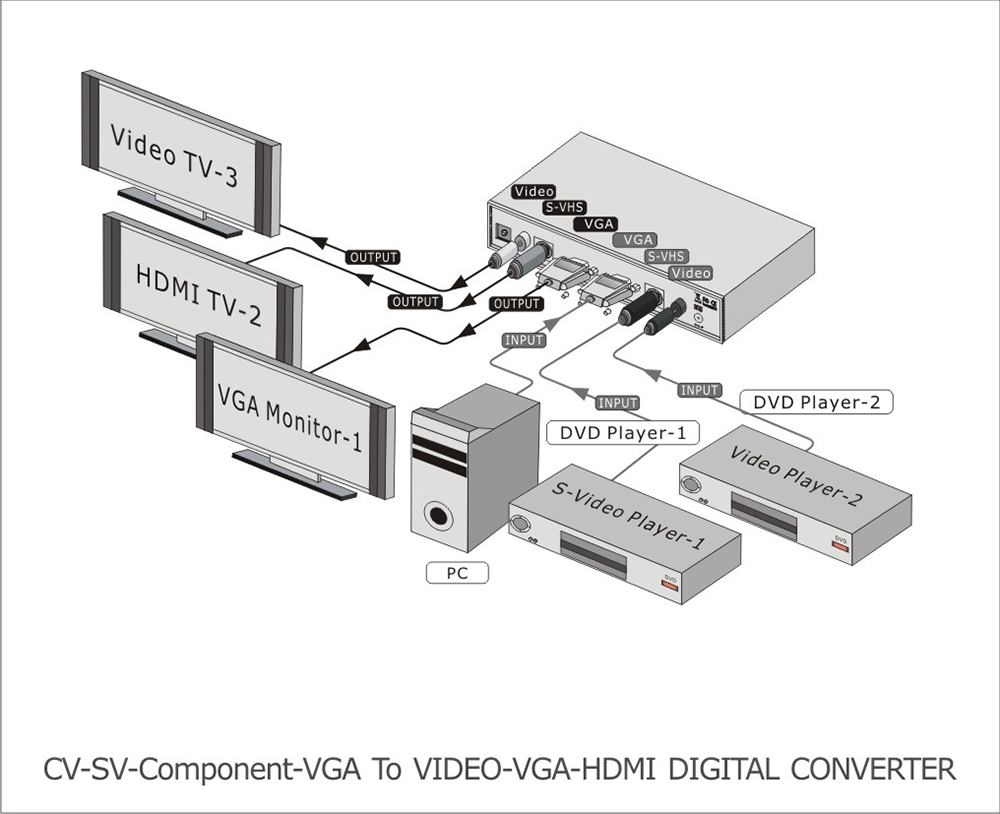

  • 1. Multi-Video Input from Video/Comp./VGA/HDMI To Video/VGA/HDMI Digital Converter
    2. Inputs: 1x Composite Video, 1x Component Video (YPBPR), 1x VGA and 1x HDMI.
    3. Outputs: 1x Composite Video, 1x VGA(XGA to WUXGA) and 1x HDMI 1080P-60.
    4. HDMI Video Scaler Support HDMI 1.3a 3D formats, HDMI V1.3 Transmitter & Receiver,
        HDMI 1.3, DVI 1.0, HDCP 2.0 Compliant.
    5. Support High VGA resolution Inputs and Outputs:
      VGA 640x480, SVGA 800x600, XGA 1024x768, WUXGA 1920x1200(Maximum)
    6. Support Multi-TV Video Standard System Inputs and Outputs:
      NTSC3.58, NTSC-J, PAL, PAL-N, PAL-N Com-n, PAL-M, PAL60
    7. Input resolution Maximum 1080i 1920x1080 (only in Component Video).
    8. Support intelligent color adjustment (Discrete RGB color adjustment, Hue, saturation,
      sharpness, contrast, brightness and (4) preset color modes).
    9. OSD (on screen display) for menu color, resolution and input source selections.
    10. Provide IR remote control (38KHz).
    11. Various User Interface control:
            ‧ Front Panel push button
            ‧ IR wireless remote control
            ‧ RS 232 interface control driver for 95/98/2000/xp
    12. Power supply DC12Volt, Universal Type switch 100~240VAC, 50/60Hz.
  • 1. Type of Converter:  4 in 3 out HDMI MultiVideo Scaler Converter
    2. Video Input Signal : 1x Composite Video, 1x Component (YPBPR), 1x VGA(RGBHV) and 1x HDMI.
    3. Audio Inputs : 1x Stereo Audio (Video), 1x Stereo Audio (Comp.) and 1x Stereo Audio (VGA).
    4. Video Output Signal :  1x Composite Video, 1x VGA and 1x HDMI
    5. Audio Outputs : 1x Stereo Audio(PCM-2ch), 1x SPDIF
    6. HDMI/HDCP Support : HDMI 1.3 Receiver & Trasnmitter, compliant with HDCP 2.0
    7. 3D Support : 3D Video Format in HDMI 1.3a (225MHz)
    8. Video Color Subcarrier  NTSC-3.58 / NTSC-J 4.43 / PAL-4.433619 / PAL-M 3.575611
    9. Frequency:  / PAL-N 3.582056 Mhz / PAL-60,  0.5 V-pp~2V-pp,75 Ohms.
    10. VGA Resolutions : VGA(640x480), SVGA(800x600), XGA(1024x768), Maximum
    11. PAL/NTSC line Conversion :  Composite Video 525 / 625Lines
    12. PAL/NTSC Field Conversion:  Composite 50 / 60 Hz Fields
    13. Input Resolution :  Component Video input Maximum 1080i-60 1920x1080.
    14. Output Scaler :  Up to HDMI 1080p-60 and WXGA 1920x1200
    15. Source Status :   Automatic scanning of input/output status
    16. HDMI Cable Distance :  Max. 15 meters (~49 feet), depending on cable quality
    17. Infrared Frequency :  38KHz
    18. Chassis Material :  Metal
    19. Control :  IR remote control or front panel push buttons
    20. Dimensions :  8.66"x  5.06"  x  1.73" (220mm x 128mm x 44mm)
    21. Power Supply :  Input 100 ~ 240 VAC, 50/60 Hz Output DC 12V, 2A
    22 Safety Approvals:   CE, FCC, RoHS
    23 Temperature :  32F ~ 100F (0~32C)
    24 Net Weight (Unit only) :  1.4 kgs / 3.09 lb
