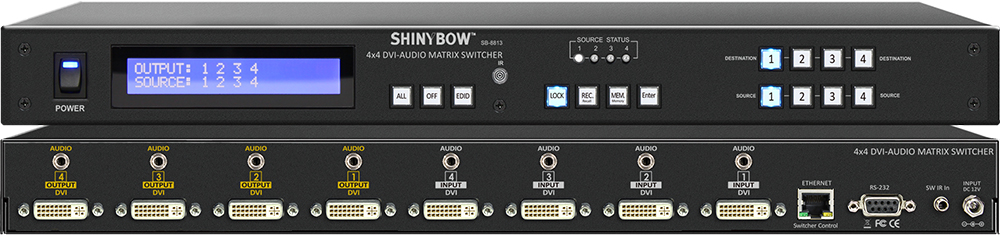

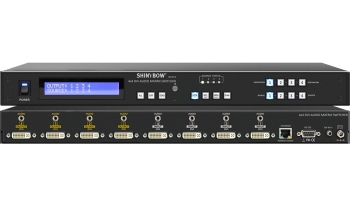

4x4 DVI-Audio Matrix Switch
4x4 DVI-Audio Matrix Switch
Input : 4x DVI / Audio

Output : 4x DVI / Audio

  • Introduction
  • Features
  • Specifications
  • The SB-8813 is high-performance 4x4 matrix routing switcher for DVI (Digital Visual Interface) and analog Stereo Audio (AR/AL) signals. This Switcher supports data rates up to 2.25 Gbps, Video Bandwidth 340MBhz, enabling 1920x1200 DVI formats and UXGA/WUXGA/DVI resolution to any HDTV display. High Definition full Digital Video DVI signals can be selected and distributed to any 4 outputs simultaneously. The Switcher is certified as being fully DVI and HDCP compliant, with CE, FCC certification. Support high resolution DVI sources routedto DVI displays, monitors, projector or audio receivers. The EDID can be selected between four (4) different modes. Control is provided via Front panel push buttons, IR remote, TCP/IP (not a web-browser) or RS- 232. An RS-232 Windows GUI interface is provided for matrix routing control (Windows only).
  • 01. 4x DVI & Audio signal device sources matrix switched to 4x DVI & Audio destinations


    02. DVI digital video w/embedded HDCP, DVI format and HDCP 1.3 compliant

    03. Seven (7) function key control and worldwide (4) EDID modes for HD-DVI resolutions

    04. Link speeds of up to 2.25 Gbps (link clock rate of 340Mb Hz), Support DVI 3D formats

    05. Wide range of HD resolutions from PC XGA/UXGA/WUXGA/DVI to WUXGA 1920x1200

          and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p

    06. Digital Video TMDS formats Resolution up to 1080P-60 with Deep color 36-bit

    07. Various User Interface control :

          • Windows based GUI control via RS-232 port

          • Front Panel push button

          • IR wireless remote control

          • Ethernet series control

          • Third party RS-232 controller (via simple ASCII)

    08. Support world wide control functions :


    09. Support Embedded EDID modes :

          • Internal modes : FSS / 1280x1024-60Hz / 1920x1200-60Hz / Auto

          • External modes : Learning mode

    10. Automatic scanning input sources status via LED show on front panel

    11. Support ISP function to update the new F/W via RS-232 port

    12. Support IR Remote and IR Extender with distance up to ~ 984 (300M) Maximum

    13. Support Rack Mount 1RU High 19" Rack Mount with rack mount (1U-440L)

    14. Support Power Supply 12VDC, 3A Universal Type 50/60Hz, 100~240 VAC

  • Type of DVI Switcher 4x DVI inputs To 4x DVI Outputs Matrix Switcher
    DVI Support HD 1920x1200, H36-bit Deep color, 3D (HDMI 1.4a) formats
    HDCP / CEC Support HDCP 1.3 Compliant, CEC Compliant
    Video Bandwidth Double Data Rates:340Mhz, Total 2.25Gbps bandwidth
    Video Support Digital Visual Interface TMDS digital format signal
    Audio Support Analog Stereo Audio
    Digital Video Support HD resolution : 1920x1200, HDMI 480i/p / 720p / 1080i /p
    Switch Controls 1x IR Remote Controller
    1x IR External port x 1 (OD 3.5mm Ear phone Jack)
    1x Select & Function buttons on front panel
    1x Ethernet serial interface
    1x RS-232 serial interface
    Ethernet Support Ethernet serial interface (AP version 2.0)
    Source Status Automatically Scan Sources Inputs via (4) LED show out
    Function Control Key ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID
    Infrared Frequency 38 Khz
    IR External Distance ~984 feet / 300 meters maximum
    DVI I/O Connector DVI-D - (24+5) pin Female DIP Type
    Temperature 32°F - 100°F Operation (0°C - 38°C)
    Rack Mount Rack Mount 1RU High 19" Rack Mount (with rack mount)
    Dimension (WxDxH) 19" x 9.85" x 1.75" (482mm x 250mm x 44mm)
    Power Supply DC12V / 3A
    Universal world wide Type 50/60Hz, 100~230 VAC
    Power Consumption 1880 mA Maximum
    Safety Approvals CE, FCC, REACH
    Weight 2.25 Kg / 3.75 lb
