Input :
8x Component Video(YPBPR)-
Digital(Audio)-Stereo Audio(AR/AL)
Output :
8x CAT5 (Component-Digital-Audio),
1x Component-Digital-Audio Preview port
  • Introduction
  • Features
  • Specifications

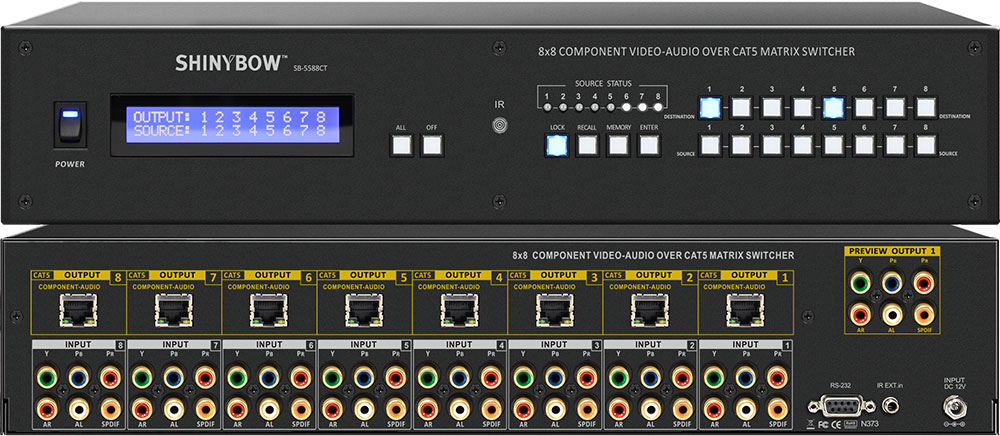

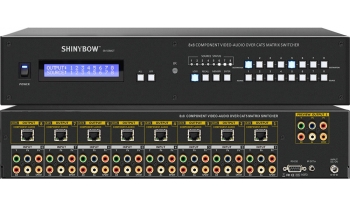

  • The SB-5588CT is a true Matrix Routing Switcher for Component Video(YPbPr) Digital Audio(PCM)/Stereo Audio signals. It is an 8 individual Component Video(YPbPr)/Digital Audio(PCM)/Stereo Audio(AR/AL) inputs and 8 individual CAT5 Digital Audio(PCM)/Stereo Audio(AR/AL) outputs. And one(1) Preview output port. Because it is a matrix router, any input may be routed to any output; or the same input may be routed totally outputs or any combination. It completely eliminates the need to constantly move around audio and video input cables and output category (RJ-45) cables. The SB-5588CT is useful for Matrix signals from A/V source devices (such as: VCRs, Camcorders, Video Game Consoles, Video CD players, DVD players, Satellite Receivers, CATV Set Top Boxes, etc.) To AV destination devices over CAT5 cables (such as: LCD TV, Plasma TV Monitors, HDTV Sets, Video Projectors, etc.)Control inputs via the front panel push buttons or an Infrared Remote Control unit or RS-232 control by a computer. The RS-232 will support via Ethernet(optional) control by computer, The preview output is provide via output#1 on the same time and picture.
  • 1. Support 8 inputs to 8 outputs Component over CAT5 Output Matrix Switcher
    2. Input signals support Component Video(YPbPr), Digital Audio, Stereo Audio
    3. Output Signals via CAT5 category cable to HDTV, HD LCD displays
    4. Support HDTV high definition resolutions 408p, 576i/576p, 720p
    5. Higher Video Bandwidth 325MB each path signals
    6. The Digital Audio (PCM) and Composite Video compliant
    7. Compatible with all Component Video devices, Plasma TV display and HDTV
    8. Switching Component Video YPbPr, Digital Audio (PCM) and Audio signals
    9. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays
    10. Direct selection and confirm via Front pushbuttons with LED readout
    11. Various User Interface controls:
    • Attached Window based control software for Desktop or NB control by RS-232 port
    • Manual control by Front Panel button
    • IR remote control
    • RS-232 via Ethernet by Optional
    • Video via Ethernet by Optional
    • IR Extender
    12. Support PC RS-232 Drive compatible with Win-95/98/2000/XP A Windows-based control software Driver packaged
    13. RS 232 protocol list with manual attached
    14. Enclosure type : Support 19 inch Ear & 2RU Rack mountable pane
    15. Support Lower power consumed full load under 1500 mA
    16. Power supply offer a universal type 100~240 VAC switch
  • Type of Switcher 8 in to 8 out, Component Video-Digital-Audio Matrix Switcher
    Input ports:A Group 1x Component Video (YPbPr) 0.5~1.0Vpp, DDC 5Vpp,
    1x Digital Audio (PCM), Via 1x RCA connector,
    1x Stereo Audio (AR/AL), Via 2x RCA connector(Red/white)
    Output ports:A Group 1x CAT5 : Component Video (YPbPr) 0.5~1.0Vpp,
    DDC 5Vpp, Via 1x RJ45 CAT5 connector
    1x CAT5 : Digital Audio (PCM) and Stereo Audio
    (AR/AL) Via 1x RJ45 CAT5 connector
    Video Bandwidth 450MHz (-3dB), 200mVp-p
    Video Support Higher resolution formats 480i/p, 720p & 1080i/p
    Audio Support Digital Audio(PCM) and Stereo Audio(AR/AL)
    Low all hostile crosstalk -83dB@5MHz
    Controls IR remote, Select buttons on the front panel & RS-232
    PC RS-232 Control RS-232 interface serial via DRV on a PC
    Gain control 60MHz 0.1dB gain flatness
    Chassis Material Metal thin=1mm
    Safety Approvals CE, FCC, VCCl, REACH, Erp, WEEE
    Dimension (WxDxH) 19" x 7.87" x 3.46" (482mm x 200mm x 88mm)
    Power Supply DC12V / 3A (consumption 2.25A Max)
    Use Universal Switch Type 50/60Hz,100~240 VAC
    Weight 3.25 Kgs / 7.15 lb
