Multi-Video Converter
Multi-Video Converter
Input : 1x Composite Video / Audio, 1x Component Video / Audio, 1x VGA / Audio, 1x HDMI
Output : 1x VGA / Audio, 1x HDMI / S/PDIF, 1x Video / Audio
  • Introduction
  • Features
  • Specifications

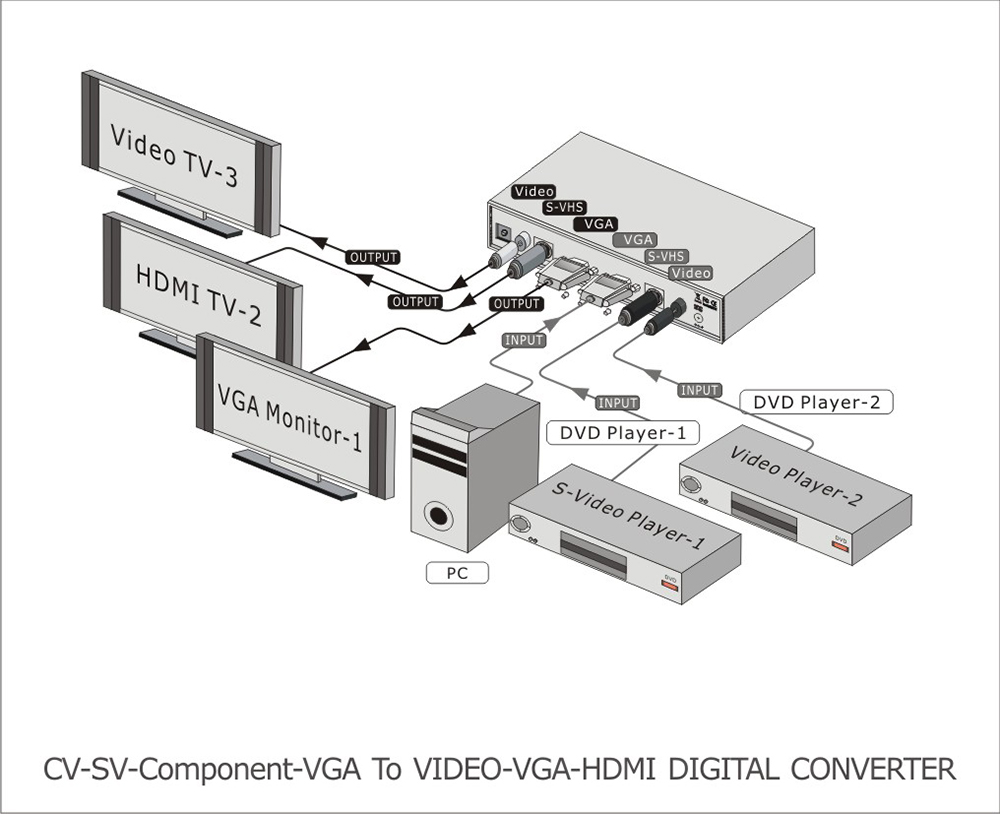

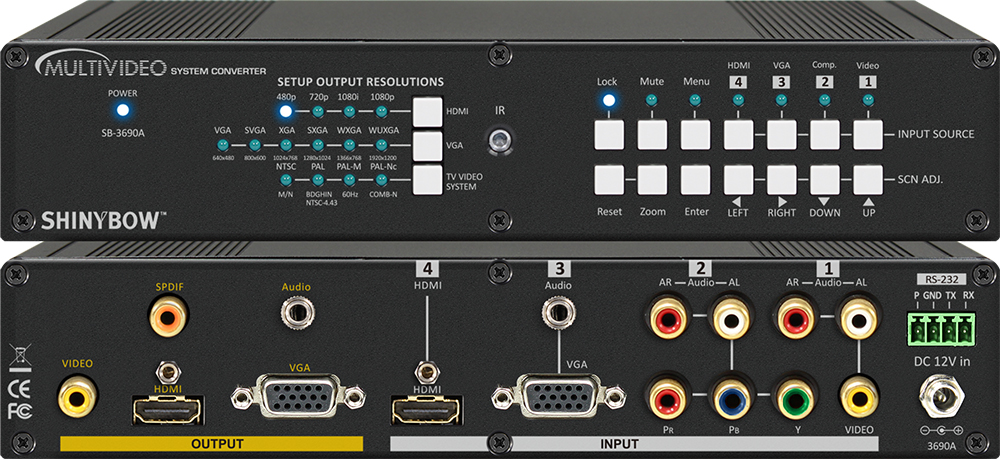

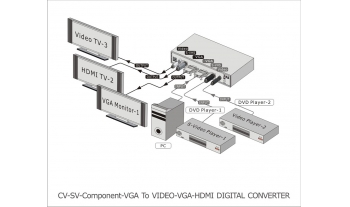

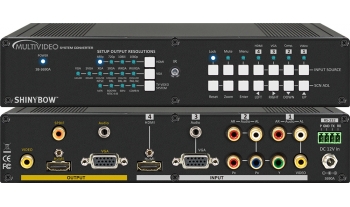

  • The SB-3690A is a high performance video graphics scaler supporting four (4) different video Input signal types including 1xComposite Video with Audio, 1x Component Video with Audio, 1x VGA with Audio and 1x HDMI™. The available Output ports 1x HDMI™, 1x Composite Video and 1x VGA. ALL Output ports are active simultaneously. This scaler supports HDMI™ 1.3 formats and is HDCP 1.2 Compliant. The SB-3690A Auto-detects the Input video standard in the form of NTSC,PAL and SECAM systems and converts to High Definition RGB digital HD signal. The scaler supports full HDTV resolution 480i/p, 576i/P, 720p or 1080i/p-60Hz formats, higher DVI resolution up to 1920x1200. Zoom management can be selected between 5 modes. Input resolutions can be scaling up to 1080p and scaling down to 480p. Support menu for controlling brightness, contrast and saturation. Control is provided via front panel buttons with LED display, RS-232 or wireless IR remote control (included).
  • 01. Multi-Video Input from Video/Comp./VGA/HDMI To Video/VGA/HDMI Digital Scaler
    02. Inputs: 1x Composite Video, 1x Component Video (YPBPR), 1x VGA and 1x HDMI
    03. Outputs: 1x Composite Video, 1x VGA(XGA to WUXGA) and 1x HDMI
    04. HDMI Video Scaler Support HDMI 1.3, HDCP 1.2 Compliant.
    05. Support High VGA resolution Inputs and Outputs :
           VGA 640x480, SVGA 800x600, XGA 1024x768, WUXGA 1920x1200 (Maximum)
    06. Support Multi-TV Video Standard System Inputs and Outputs :
           NTSC3.58, NTSC-J, PAL, PAL-N, PAL-N Com-n, PAL-M, PAL60
    07. Input resolution Maximum 1080i 1920x1080 (only in Component Video)
    08. Support menu for controlling brightness, contrast and saturation.
    09. Zoom management can be selected between 5 modes
    10. Provide IR remote control (38KHz)
    11. Various User Interface control:
           • Front Panel push button
           • IR wireless remote control
           • RS-232 interface control driver for 95/98/2000/xp
    12. Power supply DC12Volt, Universal Type switch 100~240VAC, 50/60Hz
  • Type of Converter 4 in 3 out HDMI MultiVideo Scaler Converter
    Video Input Signal 1x Composite Video, 1x Component (YPBPR), 1x VGA (RGBHV) and 1x HDMI
    Audio Inputs 1x Stereo Audio (Video), 1x Stereo Audio (Comp.) and 1x Stereo Audio (VGA)
    Video Output Signal 1x Composite Video, 1x VGA and 1x HDMI
    Audio Outputs 1x Stereo Audio(PCM-2ch), 1x S/PDIF
    HDMI/HDCP Support HDMI 1.3 Receiver & Trasnmitter, compliant with HDCP 1.2
    Video Color Subcarrier Frequency NTSC-3.58 / NTSC-J 4.43 / PAL-4.433619 / PAL-M 3.575611 / PAL-N 3.582056 Mhz / PAL-60, 0.5 V-pp~2V-pp,75 Ohms
    VGA Resolutions VGA(640x480), SVGA(800x600), XGA(1024x768), Maximum WUXGA(1920x1200)
    PAL/NTSC line Conversion Composite Video 525 / 625Lines
    PAL/NTSC Field Conversion Composite 50 / 60 Hz Fields
    Input Resolution Component Video input Maximum 1080i-60 1920x1080
    Output Scaler HDMI up to 1080p-60 and PC up to WXGA 1920x1200
    Source Status Automatic scanning of input/output status
    HDMI Cable Distance Max. 15 meters (~49 feet), depending on cable quality
    Infrared Frequency 38KHz
    Chassis Material Metal
    Control Front Panel, IR and RS-232
    Dimension (WxDxH) 8.66" x 5.04" x 1.73" (220mm x 128mm x 44mm)
    Power Supply Input 100~240 VAC, 50/60 Hz Output DC 12V, 2A
    Safety Approvals CE, FCC
    Temperature 32°F - 100°F (0°C - 32°C)
    Weight 1 kg / 2.2 lb
