Input : 1x VGA(RGBHV)
Output : 4x VGA(RGBHV)


  • Introduction
  • Features
  • Specifications

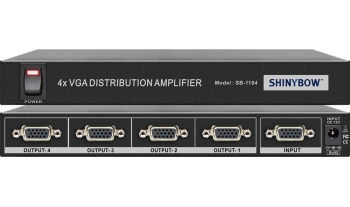

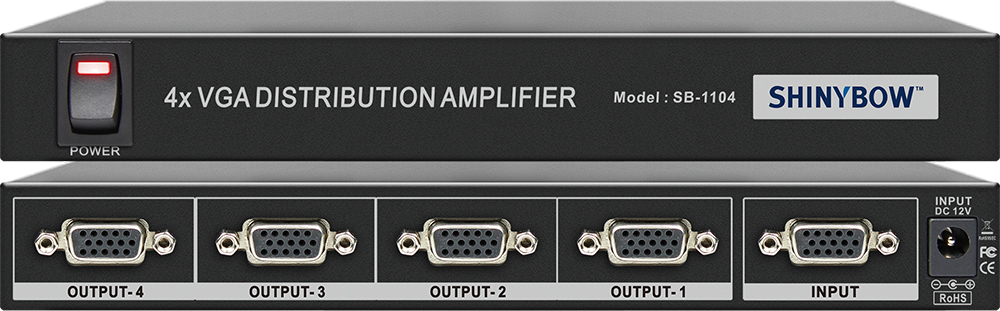

  • SB-1104 is a 1x Input To 4x Outputs for VGA (RGBHV) signals distribution amplifier and For HD high resolution VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), WUXGA (1920x1200) Plasma Display or Monitor. Also support full HD resolutions for 480i, 480p, 576p, 720p, 1080i and 1080p HDTV. An ultrahigh speed current feedback amplifier with a phenomenal 5500V/us, slew rate that results in a rise time of 545ps, making it ideal as a pulse amplifier. The high slew rate reduces the effect of slew rate limiting and results in the large signal Bandwidth 440MHz(G=+2), Small signal Video Bandwidth (-3dB), 1000MHz (G=+1) delivers computer resolutions up to 2048 x 2048. Input and output connectors are HD-15 female type. Support wall mountable metal cases, 1 inch high. All units are +12VDC powered and the power switch supply for 100~240VAC 50/60Hz CE,FCC approval adaptor is included.
  • 1. Support 1 input to 4 outputs of Signal VGA (RGBHV) Distribution Amplifier
    2. Low Distortion over Wide Bandwidth Large Signal Bandwidth 440MHz, G=+2,
    Small signal Bandwidth 1GHz (-3dB) G=+1
    3. High VGA resolutions for VGA, SVGA, XGA, UXGA,WUXGA (1920x1200)
    4. High Definition HDTV resolutions for 480p, 720p, 1080i and 1080p (1920x1080)
    5. Support Lower power consumed full load under 500mA
    6. Automatically Scan rates accepted : 50Hz or 60Hz
    7. Terminal via HDdB15P Female connector
  • Type of Amplifier 1 input to 4 outputs VGA Distribution Amplifier
    Type of Signals HD-15p via HD-15P female connectors
    Large Signal Bandwidth 440MHz, G=+2
    Small signal Bandwidth 1GHz (-3dB) G=+1
    Settling Time 10 ns to 0.1%, 2 V Step, G=+2
    Scan rates accepted 50Hz or 60Hz
    Support High HD resolutions VGA, SVGA, XGA, UXGA,WUXGA 1920x1200
    Gain Flatness 0.1dB to 75MHz
    High Output Drive 175 mA Output Load Drive
    Safety approvals CE, FCC, Erp, WEEE
    Dimension (WxDxH) 8.27" x 4.49" x 1.06" (210mm x 114mm x 27mm)
    Weight 0.7 kg / 1.54 lb
    Power Supply DC 12V, 0.66A
