Input : 1x HDMI
Output : 1x HDMI
  • Introduction
  • Features
  • Specifications

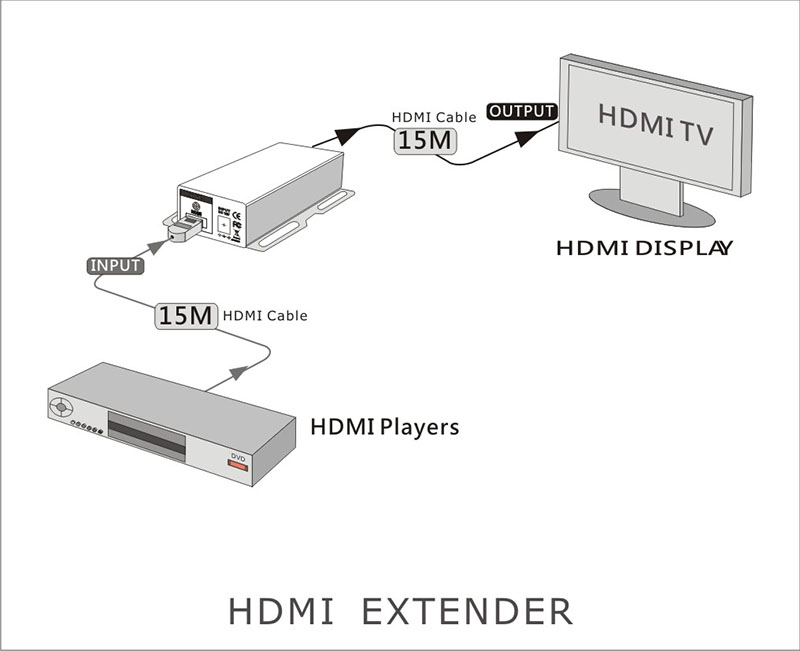

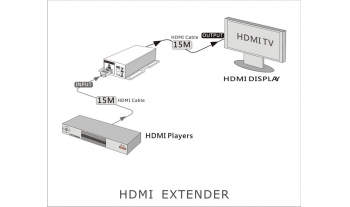

  • The SB-6225 is a HDMI™ extender and will extend the HDMI™ signals up to100 feet. In its basic configuration, the SB-6225 links two HDMI™ cables to create a longer extension up to 100 feet. SB-6225 repeaters can be daisy chained, to create much longer HDMI™ extensions up to 360 feet. The SB- 6225 supports the HDMI™ 1.3, 1.4a 3D version ,1080p HD resolution and multi-channels digital audio for the best signal quality. Standard installation involves using HDMI™ cable -- up to 50 feet long which is connected from HDMI™ source (DVD player,PS3, set-topbox) to the HDMI™ input jack on the SB-6225. The another HDMI™ cable runs from the SB-6225 output jack to the HDTV display -- up to 50 feet away.
  • 1. HDMI signal Digital Video TMDS /Audio 30M Extender
    2. HDMI digital Video/Audio and DVI format and HDCP compliant
    3. Support link speeds of up to 3.4 Gbps
    4. Support Digital RGB 36bits HDMI TMDS format deep color
    5. Extension with high quality video 1920x1200 for 1080p-60Hz
    6. Support HD High Definition resolution 408p, 720p 1080i/1080p
    7. Support High quality Digital Audio format with DTS-HD Master Audio, Dolby True-HD & Dolby
    8. Long distance extend between Blu-Ray HDMI player and HDMI display
    9. Easy to install without any adjustment
    10. Wall mountable
    11. Power DC 12V input with Low power consuming
  • Type of Extender HDMI signal for distance 30M Extender
    Signal Support Compliant with HDMI 1.4a and DVI 1.1 standards, HDCP Compliant
    Support HD resolution Capable of supporting the following digital video formats in Deep Color Mode at up to 36 bits (12 bits/color):DTV resolutions: 480i, 576i, 480p, 576p, 1080i to 1080p, PC resolutions: VGA, SVGA, XGA, SXGA to UXGA
    Audio Support DTS-HD Master Audio, Dolby True-HD & Dolby Digital Plus
    Safety Approval CE, FCC,VCCI,REACH,WEEE,Erp
    Dimension (WxDxH) 2.65" x 2.76" x 1" (67.4mm x 70mm x 25mm)
    Weight 0.15 kg / 0.33 lb
    Power Supply DC 12V /0.42A Max, Use Universal Switch Type 50/60Hz, 100~240VAC
