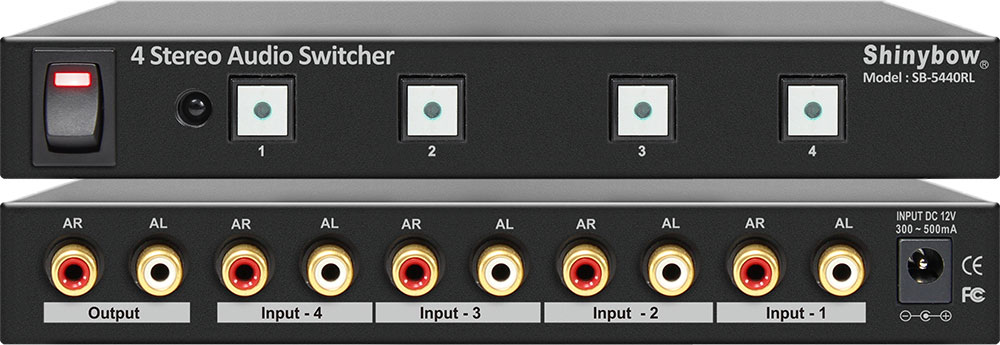

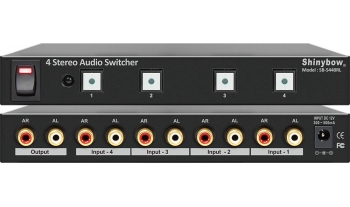

4x1 Stereo Audio SWITCHER
4x1 Stereo Audio SWITCHER
Input : 4x Stereo Audio (RCA Connectors)
Output : 1x Stereo Audio (RCA Connector)
  • Introduction
  • Features
  • Specifications
  • SB-5440RL is a 4 inputs to 1 output Stereo Audio (AR/AL) router switcher. This Audio switcher product is one of the most innovative Stereo Audio (AR/AL) routing switcher product. Support 4 individual inputs with 1 individual output and wall mount type. Any inputs on switcher can be routed to any 1 output. It completely eliminates the need to constantly move around cable of Audio input and output. This switcher is suit for sources from full HD LCD HDTV Television or HD Plasma display monitor applications to speakers. Control is provided via Front select push buttons with LED readout and IR remote controller.
  • 1. Support 4 Inputs To 1 Output Stereo Audio Router Switcher
    2. Support switch signal Stereo Audio via 8x RCA Connectors
    3. Audio Bandwidth : 60MHz (-3dB)
    4. Infrared IR remote control via frequency (38Khz)
    5. Suitable for switching Audio from Video player device and HDTV, LCD TV, Plasma TV, HD Monitor displays
    6. Controls by front panel push buttons with LED readout and IR remote controller
    7. Support Lower power consumed full load under 180 mA
    8. Power supply offer a universal type 100~240 VAC switch
  • Type of switcher 4 inputs to 1 output Audio Routing Switcher
    Type of Signals Stereo Audio via 8x RCA Female Connectors
    Audio Bandwidth 60MHz, (-3dB)
    All Hostile Crosstalk -56db @ 5MHz, -45dB @ 50MHz
    Scan Rates Accepted 50Hz or 60Hz
    IR Infrared Frequency 38 KHz
    Controls Direct selection via front panel push buttons with LED  readout or IR Remote Controller
    Safety Approvals CE, FCC, VCCI, REACH, Erp, WEEE
    Dimension (WxDxH) 6.90" x 3.12" x 1.00" (176mm x 80mm x 25mm)
    Weight 0.5 kg / 1.1 lb
    Power Voltage Input DC 12V @ 0.66A
