Input : 4x VGA(RGBHV)
Output : 1x VGA(RGBHV)


  • Introduction
  • Features
  • Specifications

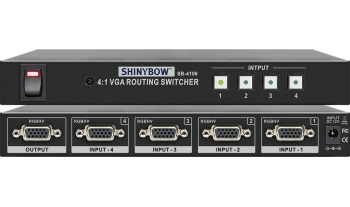

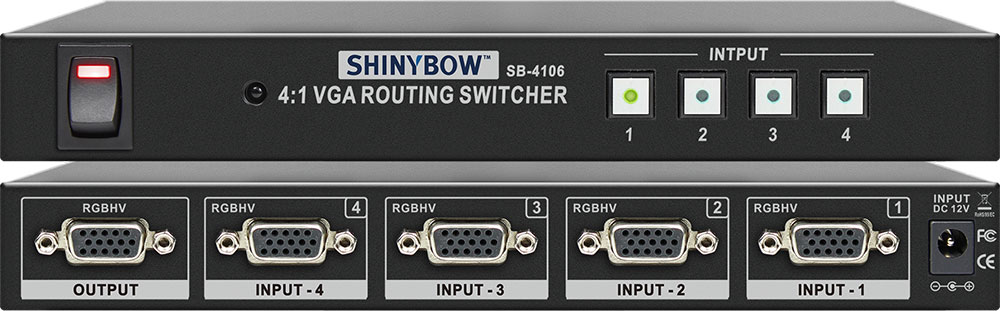

  • SB-4106 is a high speed Video Bandwidth 310MHz, Maximum 380MHz for VGARGBHV routing switcher product. It’s one of the most innovative VGA RGBHV signals switch router product. It has 4 individual inputs with 1 individual output. It is a four inputs switcher, any input may be routed to one output. It completely eliminates the need to constantly move around VGA input and output cables.This switcher is suited to full HD LCD Television and HDTV high resolution for 480p, 720p,1080i, 1080p, VGA high HD resolution for UXGA 1600x1200 or Plasma display monitor applications. Control is provided via front switch push buttons with LED readout or IR remote controller.
  • 1. Support 4 inputs to 1 output VGA Switcher
    2. Support PC Resolution VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), WUXGA (1920x1200)
    3. Video Bandwidth : 380MHz (-3dB), 200 mVp-p
    4. Excellent Video (VGA-RGBHV) Performance
    5. Low all hostile crosstalk of -83dB @ 5MHz
    6. Excellent ESD rating : exceeds 4000 V
    7. Switching RGBHV in LCD monitors and plasma monitor displays
    8. Suitable for full HD high resolution Video player device and LCD/Plasma monitor displays
    9. Front push buttons with LED readout
    10. Infrared : IR remote control (38KHz)
    11. Support Lower power consumed full load under 550 mA
    12. Power supply offer a universal type 100~240 VAC switch
  • Type of switcher 4 inputs to 1 output VGA Switcher
    Video Bandwidth  380MHz, (-3dB) 200 mV p-p, 310MHz, (-3dB) 2V p-p, R=325MHz, G=325MHz, B=325MHz, H=110MHz, V=110MHz
    Gain Flatness 90MHz, 0.1dB
    Differential Gain Error 0.01%, 0.1dB
    Differential Phase Error 0.02, 0.1dB (RL=150W)
    Fast settling time 15ns To 0.1%
    All Hostile Crosstalk -84db @ 5MHz, -54dB @ 50MHz
    Channel Crosstalk -56db @ 100MHz
    Slew Rate 1000V/us, G=+1,2V Step
    High OFF Isolation -100dB @ 10MHz
    Output Current 100mA
    Low power CMOS 550uA Quiescent Current
    Controls IR Remote Controller,front panel select buttons with LED readout
    Safety Approvals CE, FCC, VCCI, Erp, WEEE
    Dimension (WxDxH) 8.27" x 4.49" x 1.06" (210mm x 114mm x 27mm)
    Weight 0.7 kg / 1.54 lb
    Power Voltage Input DC 12V @ 1.25A
