2x1 DVI Routing Switcher
2x1 DVI Routing Switcher

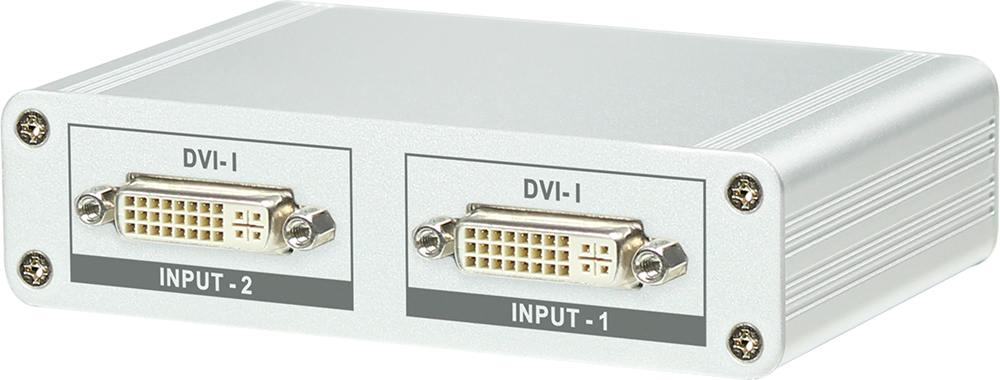

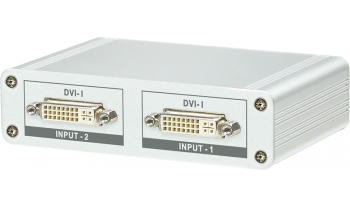

Input : 2x DVI
Output : 1x DVI
  • Introduction
  • Features
  • Specifications

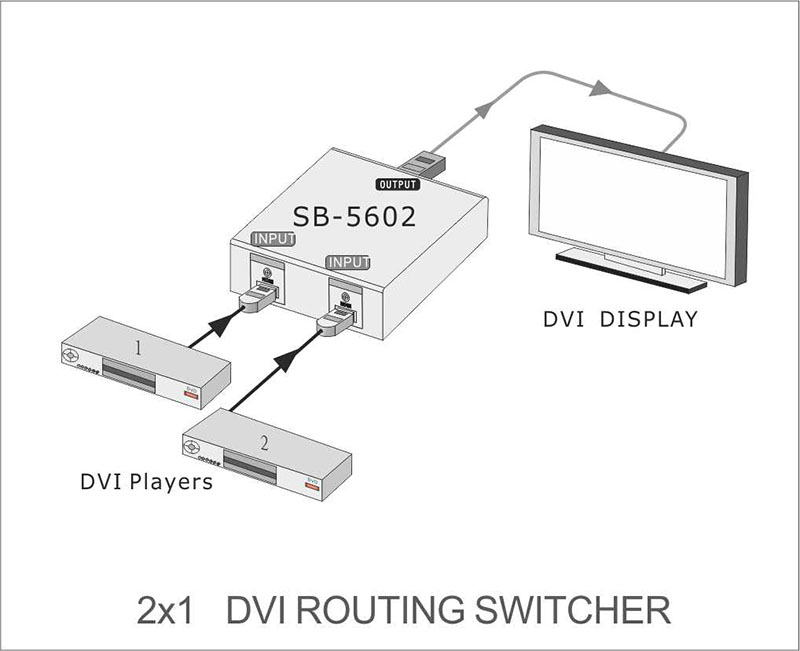

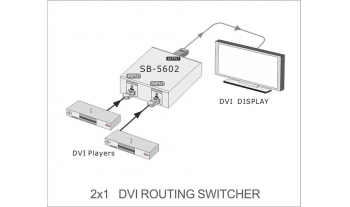

  • The SB-5602 is high quality DVI Routing Switcher, high performance designed DVI Switcher with DVI signal compatible with HDMI™(TMDS) digital Video with HDCP compliant. Providing 2x inputs and 1 output, the switcher support data rates up to 2.25 Gbps and enable UXGA DVI and 1080p HDMI™-TMDS formats resolution to LCD and Plasma display applications. Auto scan function software is built-in to extend DVI signal for long distance. This product is certified, and fully DVI (HDCP) compliant. This product is also with CE, FCC compliant. Support high DVI (HDCP) sources to multiple DVI (HDCP) display, monitor or projector.
  • 01. Support : 2:1 DVI Routing Switcher

    02. I/O Signals : DVI with HDCP Digital Video(TMDS)

    03. DVI and HDMI with HDCP compliant

    04. Support link speeds of up to 2.25 Gbps (link clock rate of 225 MHz)

    05. Support wide range of PC resolutions from XGA to UXGA 1600x1200 and HDTV/DTV

          resolutions HDMI 480i/480p, 576i/576p, 720p, 1080i & 1080p

    06. Support Digital Video TMDS formats in Deep Color 12bits

    07. Support colour depth of up to 36 bits and ensures robust transmission

          of high-quality uncompressed video content, along with state-of-the-art

          uncompressed and set-top-box

    08. Bi-direction colour space conversion (CSC) between RGB and YCBCR color

          spaces with programmable coefficients

    09. Power via LED display on front panel

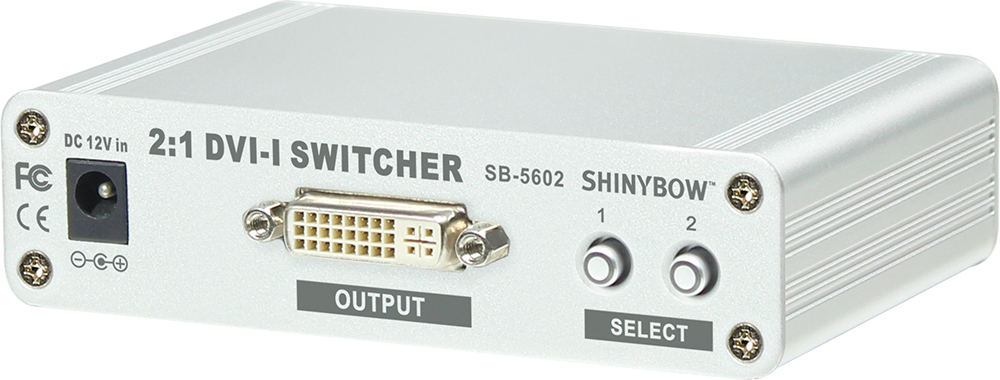

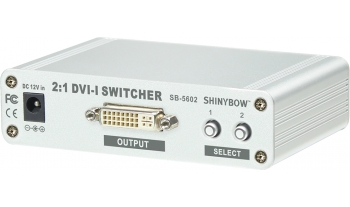

    10. Control by front panel selection buttons

    11. Support wall rack mountable type

    12. Power supply DC 12Volt, Universal Type switch 100~240VAC, 50/60Hz

  • Type of Distributor 2:1 DVI Routing Switcher
    Signal Support DVI standard, HDMI and HDCP compliant
    Video Support 1080p HDMI formats and DVI UXGA 1600x1200 HD resolutions
    Audio Support DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus
    Ttype of Signal TMDS Digital Video PCM Digital Audio
    Compliant with DVI standard DVI, HDMI and HDCP
    HDTV Support 1080p HDMI formats and DVI UXGA 1600x1200 resolution
    Controls Front Panel Selection buttons
    Data Rates/Pixel clocks 250Mbps to 2.25 Gbps  25MHz to 225 MHz
    HDMI Cable Distance 10 meters at 2.25Gbps
    Support digital video input RGB/YCBCR:24/30/36-bit
    Double data rate interface for RGB/YCBCR:12/15/18-bit
    Safety Approval CE, FCC, VCCI
    Dimension (WxDxH) 2.87" x 4.45" x 1.14" (73mm x 113mm x 29mm)
    Power Supply DC 12V /1A Max (Consumption Maximum 0.42A)
    Use Universal Switch Type 50/60Hz, 100~240VAC
    Weight 0.2 Kg / 0.44 lb
