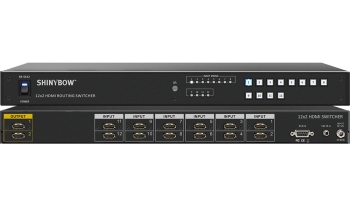

12x2 HDMI Routing Switcher
SB-5612 (1.3)
12x2 HDMI Routing Switcher
Input : 12x HDMI
Output : 2x HDMI
  • Introduction
  • Features
  • Specifications
  • The SB-5612 is a competitive high performance 12 inputs to 2 outputs routing switcher. Designed for HDMI™ signal, Support Digital Video TMDS format and Digital Audio via HDMI™ 19 Pin connectors. This product is certified as being fully HDMI™ and HDCP 2.0 compliant. Providing 12 HDMI™ device inputs and 2 HDMI™ device outputs. The Switcher support HDMI™ 1.4a 3D formats the data rate up to 2.25Gbps. Also control any one of the 12 inputs to 2 outputs via press the selection buttons on the front panel. Control by selection buttons on the front panel, IR Remote controller and RS-232 via a PC. The product approved the CE & FCC compliants. Support high resolution 1080p quality HDMI™ sources to a HDMI™ display, monitor or projector.
  • 01. Support 12 HDMI inputs to 2 HDMI outputs Routing Switcher

    02. Input: 12x HDMI

    03. Output: 2x HDMI

    04. Support HDMI 1.4a 3D formats Max Data Rate 2.25Gbps

    05. HDTV Compatible and HDCP 2.0 compliant

    06. Control by press buttons on the front panel

    07. Support the RS-232 serial port interface

    08. Support IR transceiver on the front panel and IR External device connection

    09. Input status with LED display

  • Type of Switcher 12x2 HDMI Routing Switcher
    Type of Signal TMDS Digital Video PCM Digital Audio
    Compliant with HDMI standard HDMI and HDCP 2.0
    HDTV Support 1080p HDMI formats and UXGA 1600x1200
    Data Rates Support 1.4a 3D formats,  up to 2.25 Gbps
    Pixel clocks 225Mbps
    HDMI Cable Distance 15 meters (49 feet)
    Infrared frequency 38KHz
    Controls RS-232, IR, IR EXT,Select buttons(on the front panel)
    Safety Approvals CE, FCC, REACH
    Dimension (WxDxH) 17.32" x 7.87" x 1.74" (440mm x 200mm x 44mm)
    Weight 2.45 Kg / 5.4 lb
    Power Supply DC12V / 3A Max
    Use Universal Switch Type 50/60Hz, 100~240VAC
