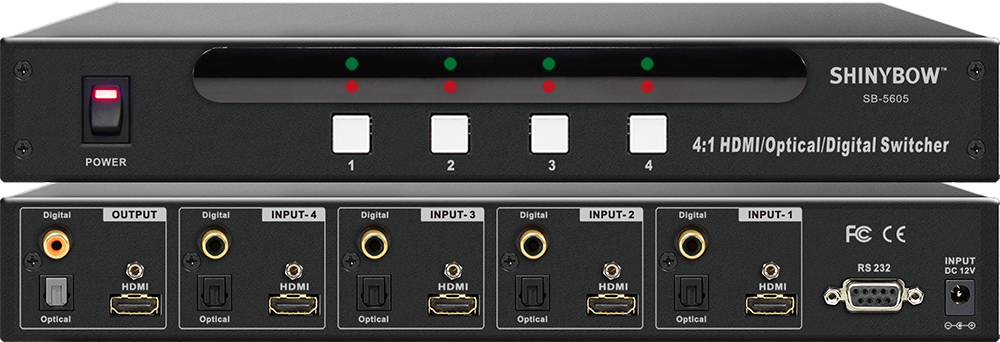

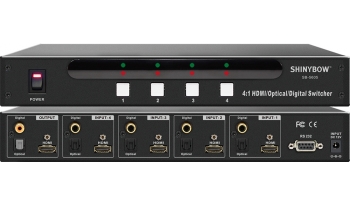

SB-5605 (1.3)
Input : 4x HDMI / Digital Audio / Optical (Toslink)

Output : 1x HDMI / Digital Audio / Optical (Toslink)

  • Introduction
  • Features
  • Specifications

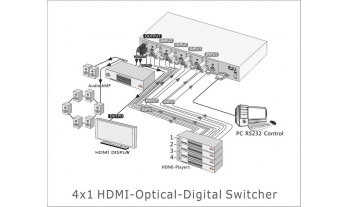

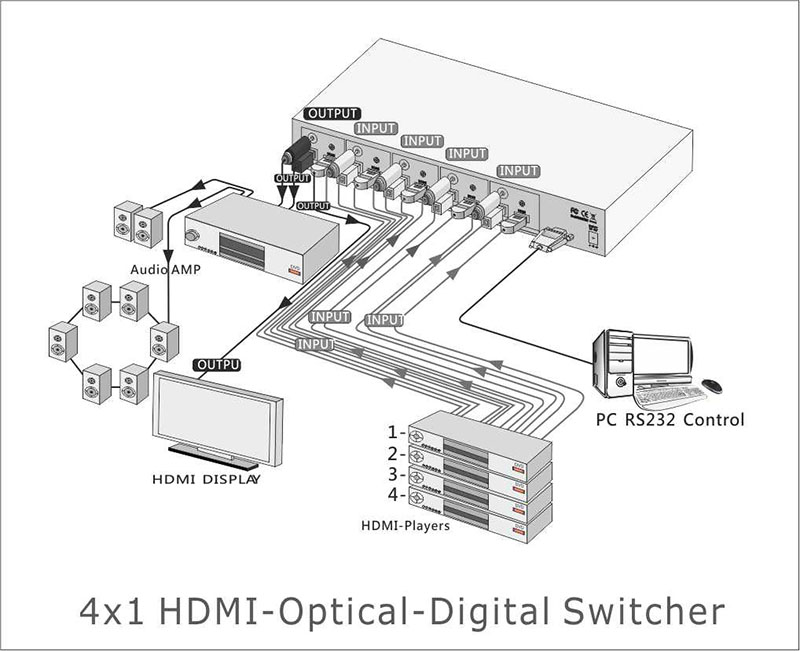

  • The SB-5605 is a competitive, high performance switcher designed for HDMI™ signal,Digital Audio(PCM) and Optical (Toslink) signals. Support Digital Video TMDS format and Digital Audio via HDMI™ connectors. Providing 4 inputs and 1 output. The Switcher supports data rate up to 2.25Gbps. Also Control any inputs to output via press the selection buttons on the front panel. This product is certified, and fully HDMI™ and HDCP compliant. The product approved the CE & FCC compliants. Support high resolution 1080p quality HDMI™ sources to a HDMI™ display, Monitor or Projector.
  • 01. Support 4:1 HDMI Switcher

    02. Input : 4x HDMI

    03. Output : 1x HDMI

    04. HDTV Compatible and HDCP compliant

    05. Support HDMI Max Data Rate – 2.25Gbps

    06. Control by press buttons on the front panel

    07. RS-232 serial port interface on the rear panel

    08. IR transceiver on the front panel

    09. Input status with LED display

  • Type of Switcher 4x1 HDMI Switcher
    Type of Signal TMDS Digital Video PCM Digital Audio
    Compliant with HDMI standard HDMI and HDCP
    HDTV Support 1080p HDMI formats and UXGA
    1600x1200 resolution
    Data Rates 250Mbps to 2.25 Gbps
    Pixel clocks 25MHz to 225 MHz
    HDMI Cable Distance 15 meters at 2.25Gbps
    Infrared frequency 38KHz
    Control RS-232, IR, Select buttons (on the front panel)
    Safety Approvals CE, FCC, REACH, Erp, WEEE
    Dimension (WxDxH) 11.97" x 6.06" x 1.74" (304mm x 154mm x 44mm)
    Weight 1.4 Kg / 3.08 lb
    Power Supply DC 12V /1.25A Max
    Use Universal Switch Type 50/60Hz, 100~240VAC
