SB-5604 (1.3)
Input : 4x HDMI
Output : 1x HDMI
  • Introduction
  • Features
  • Specifications

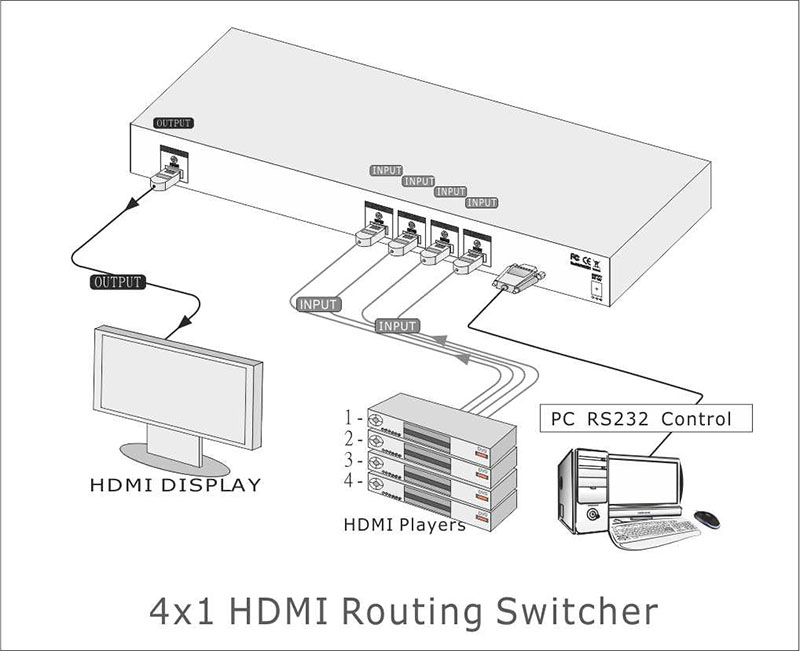

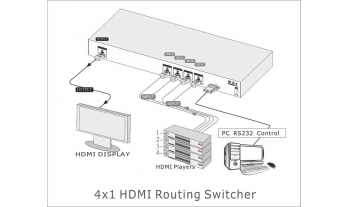

  • The SB-5604 is a competitive, high performance switcher designed for HDMI™ signal, support Digital Video TMDS format and Digital Audio via HDMI™ connectors. Providing 4 inputs and 1 output. The Switcher support data rate up to 2.25 Gbps. Also control any inputs to output via press the selection buttons on the front panel. Control by selection buttons on the front panel, IR Remote controller and RS-232 via a PC. This product is certified and fully HDMI™ and HDCP compliant. The product approved the CE, FCC compliants. Support high resolution 1080p quality HDMI™ sources to a HDMI™ display, monitor or projector.
  • 01. Support HDMI 4xInputs to 1xOutput Switcher
    02. Input: 4x HDMI (with HDCP) via 4x HDMI connector
    03. Output: 1x HDMI (with HDCP) via 1x HDMI connectors
    04. Support HDMI Max Data Rates – 2.25Gbps
    05. HDTV Compatible and HDCP compliant

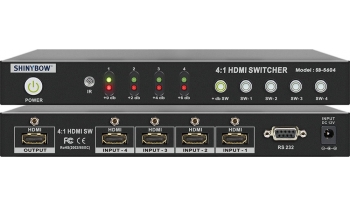

    06. Control by press buttons on the front panel
    07. RS-232 serial port interface on the rear panel
    08. IR transceiver on the front panel and IR External device connection
    09. Input status with LED display
  • Type of Switcher 4x1 HDMI Switcher
    Type of Signal TMDS Digital Video PCM Digital Audio
    Compliant with HDMI standard HDMI and HDCP
    HDTV Support 1080p HDMI formats and UXGA 1600x1200
    Data Rates 50Mbps to 2.25 Gbps
    Pixel clocks 25MHz to 225 MHz
    HDMI Cable Distance 15 meters at 2.25Gbps
    Infrared frequency 38KHz
    Control RS-232, IR, Select buttons (on the front panel)
    Safety Approvals CE, FCC, REACH, Erp, WEEE
    Dimension (WxDxH) 8.27" x 4.49" x 1.07" (210mm x 114mm x 27mm)
    Weight 0.7 Kg / 1.54 lb
    Power Supply DC 12V /1.25A
    Use Universal Switch Type 50/60Hz, 100~240VAC
