SB-5601 (1.3)
Input : 2x HDMI
Output : 1x HDMI
  • Introduction
  • Features
  • Specifications
  • The SB-5601 is a competitive, high performance switcher designed for HDMI™ signal support Digital Video TMDS format and Digital Audio via HDMI™ connector. Providing 2 inputs and 1 output, the switcher support data rates up to 2.25 Gbps. Also Control any inputs to output via press the selection buttons on front panel. This product is certified, and with fully HDMI™ and HDCP compliant. The product approved the CE , FCC compliant. Support High resolution1080p quality HDMI™ sources to HDMI™ display, monitor or projector.
  • 01. Support 2:1 HDMI Switcher

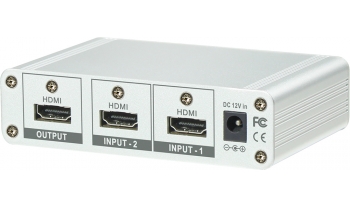

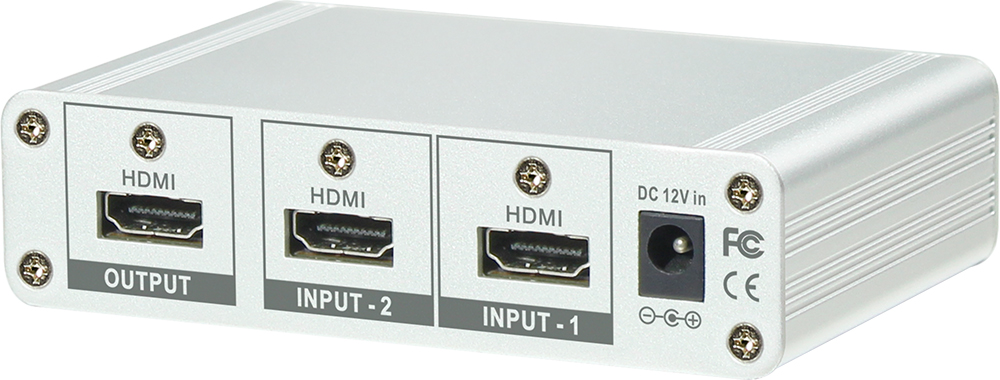

    02. Input : 2x HDMI (with HDCP) via 2x HDMI connectors

           Output : 1x HDMI (with HDCP) via 1x HDMI connector

    03. Support HDMI Max Data Rate – 2.25Gbps

    04. HDTV Compatible and HDCP compliant

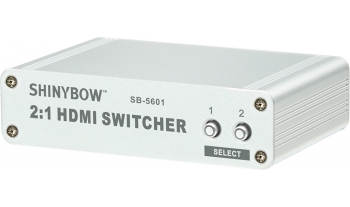

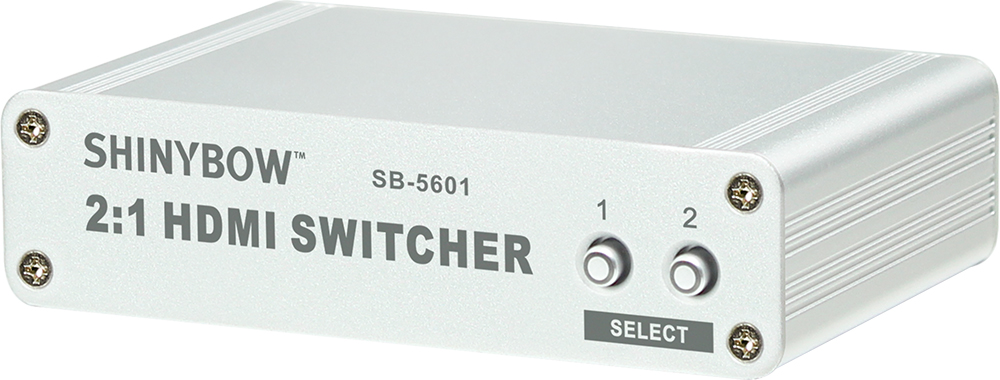

    05. Control by press buttons on the front panel

    06. Power Input : DC 12V, AC100V~240V Universal switch adaptor

  • Type of Switcher 2x1 HDMI Switcher
    Type of Signal TMDS Digital Video PCM Digital Audio
    Compliant with HDMI standard HDMI and HDCP
    HDTV Support 1080p HDMI formats and UXGA 1600x1200
    Data Rates 250Mbps to 2.25 Gbps
    Pixel clocks 25MHz ~ 225 MHz
    HDMI Cable Distance 15 meters at 2.25Gbps
    Controls select buttons on the front panel
    Safety Approvals CE, FCC, VCCI, REACH, Erp, WEEE
    Dimension (WxDxH) 4.45" x 2.84" x 1.15" (112.9mm x 72mm x 29.1mm)
    Weight 0.2 Kg / 0.44 lb
    Power Supply DC 12V /0.42A Max
    Use Universal Switch Type 50/60Hz, 100~240VAC
