Input : 8x Component Video (YPBPR)
Output : 8x Component Video (YPBPR)
  • Introduction
  • Features
  • Specifications

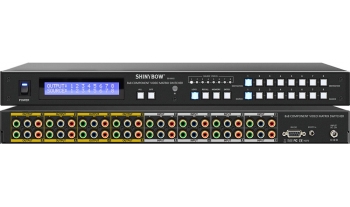

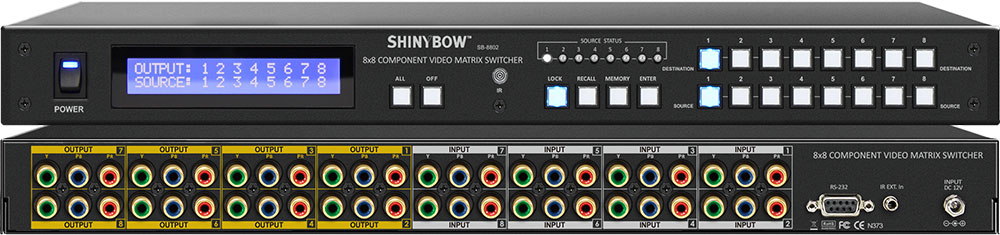

  • SB-8802 is a high speed Video Bandwidth 325MHz Maximum 380MHz Matrix Router Switcher product. It’s one of the most innovative Component Video (YPbPr), Matrix switching products on the market today. Support 19 inch Ear mount pair part number #1U-440L. It has 8 individual inputs with 8 individual outputs. Because it is a matrix router, any input may be routed to any output ; or the same input may be routed to all outputs or anycombination. It completely eliminates the need to constantly move around Component Video, Digital Audio and Stereo Audio input and output cables. This matrix switcher is ideally suited for full HDTV for the resolution of 480p, 720p. Control is provided via front pushbuttons with LED readout or IR remote controller. A RS-232 interface is provided for interfacing with third party control. A Windows-based control software package is included to provide complete control of the SB- 8802 from a PC.
  • 1. Supports 8 inputs to 8 outputs Component Video(YPbPr) Matrix Switcher
    2. Input/Output signals via Component Video(YPbPr)
    3. Higher Video Bandwidth 325MB each path signals
    4. Supported HDTV high definition resolutions 408p, 576i/p, 720p
    5. Support 300M long distance IR Extender Remote control port.
    6. Compatible with most Component Video devices, Plasma TV display and HDTV
    7. Supported RS-232 serial interface protocol commands list
    8. Control PC RS-232 Drive compatible with windows 95/98/2000/xp
    9. Various User Interface controls:
    • Attached Window based control software for Desktop or NB control by RS-232 port
    • Manual controlled by Front Panel button
    • IR remote control
    10. Support desktop with Ear mount and 19 inch 1U High Rack mountable type panel
    11. Power supply DC12V, Universal Type Switch 100~240VAC, 50/60Hz
  • Type of Switcher 8 in To 8 out, Component Video (YPbPr) Matrix Switcher
    I/O Signals Component Video (YPbPr) 0.5~1.0Vpp, DDC 5Vpp
    Video Bandwidth 325MHz (-3db), 200mVp-p
    Video Supported Higher resolution formats 480i/p, 720p & 1080i/p
    Low all hostile crosstalk -83dB@5MHz
    Gain control 60MHz 0.1dB gain flatness
    Chassis Material Metial (T=1mm)
    IR Extend Distance 300M IR line cable via IR Remote Control
    Controls IR remote, Select buttons on the front panel & RS-232
    PC RS-232 Control RS-232 interface serial via DRV on a PC
    Safety Approvals CE, FCC, VCCI
    Dimension (WxDxH) 19" x 7.87" x 1.75" (482mm x 200mm x 44mm)
    Power Supply DC12V / 2A (consumption 1.6A Max)
    Use Universal Switch Type 50/60Hz,100~240 VAC
    Weight 2.45 Kgs / 5.4 lb
