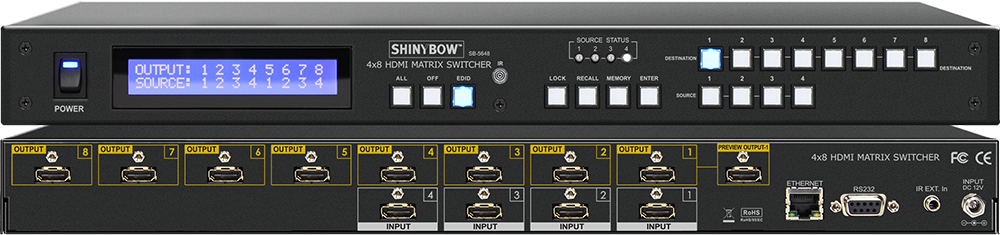

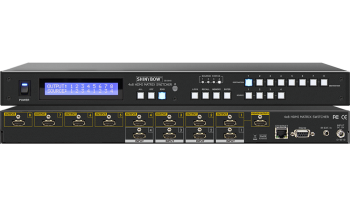

4x8 HDMI Matrix Switcher
SB-5648LCM (1.3)
4x8 HDMI Matrix Switcher
Input : 4x HDMI
Output : 8x HDMI + 1 Preview port
  • Introduction
  • Features
  • Specifications
  • The SB-5648LCM is high-performance 4x8 matrix routing switcher for HDMI™ signals. This switcher supports data rates up to 2.25 Gbps, enabling 1080p HDMI™ formats and UXGA / WUXGA / DVI resolution to any HD displays. High Definition Digital signals can be selected and distributed to any 8 outputs simultaneously. The Switcher is certified as being fully HDMI™ and HDCP compliant, with CE, FCC, REACH certification. Support high resolution HDMI™ sources routed to HDMI™ displays, monitors,projector or audio receivers. The EDID can be selected between seven (7) different modes and learning mode. Control is provided via Front panel push buttons, IR remote or via RS-232. An RS-232 Windows GUI interface is provided for matrix routing. RS-232 or TCP/ IP (not a web browser).

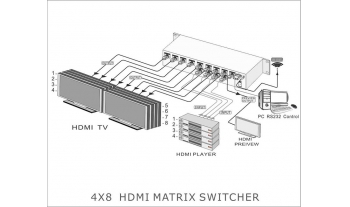

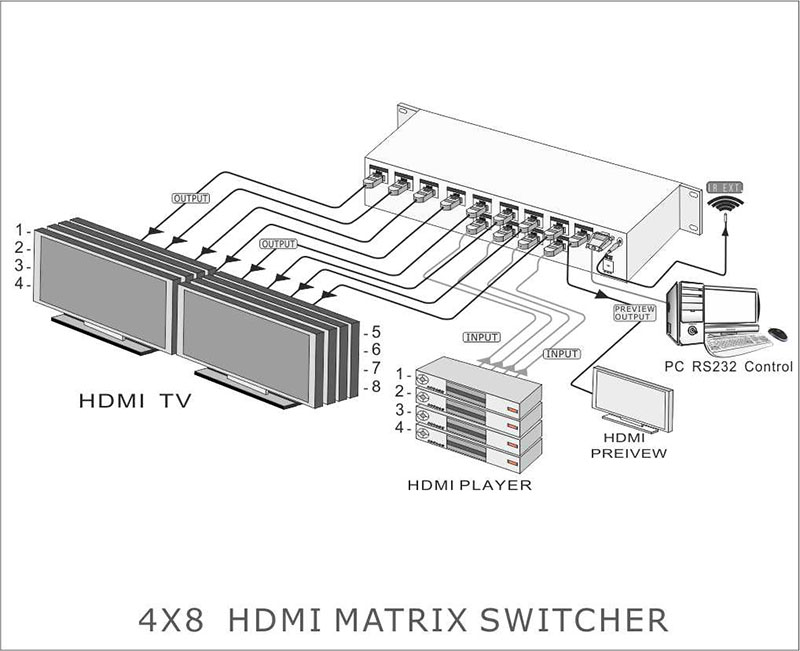

  • 01. Support (4)x HDMI digital source devices Matrix switched to (8)x HDMI destinations
    02. HDMI Digital video/multi-channel audio format, DVI 1.0 format and HDCP 1.3 compliant
    03. Support HDMI/DVI high definition resolutions 408p, 720p, 1080i/1080p up to 36 bit, 3D
          formats
    04. Support link speeds of up to 2.25 Gbps (link clock rate of 250 MHZ)
    05. Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV
          HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p
    06. Support (1) Preview output, Signal as output #1 simultaneously
    07. Audio Supports Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD,
          DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
    08. Support IR Remote and IR Extender with distance 300M Maximum
    09. Various User Interface controls :
          • Windows based GUI control via RS-232 port
          • Front Panel push buttons
          • IR wireless remote controller
          • IR External port (Switch Control)
          • Ethernet serial interface (Switch Control)
          • Third party RS-232 controller (via simple ASCII)
    10. Compatible with full HD high resolution Video player device and LCD/Prasma monitor
          displays or Projector
    11. Direct selection and confirm via Front push buttons with LED readout
    12. Infrared : IR remote control (38KHz)
    13. Support world wide seven (7) select embedded EDID modes
    14. Support seven (7) control function key :
          ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID
    15. Support RS-232 interface control AP driver for PC 95/98/2000/xp/7/8
          A Windows-based control software Driver packaged
    16. Support desktop with Ear mount and 19 inch 1U Rack mountable type panel
    17. Support Lower power consumed full load under 3880 mA
    18. Power supply DC12Volt, Universal Type Switch 100~240VAC, 50/60Hz
  • Type of  HDMI Switcher (4)x inputs To (8)x Outputs HDMI Matrix Switcher
    HDMI Support HDMI 1080P-60Hz, 36-bit Deep color,
    HDMI V1.4a 3D formats
    HDCP / CEC Support HDCP 1.3 Compliant, CEC Compliant
    Video Bandwidth Double Data Rates:250Mhz, Total 2.25Gbps bandwidth
    Input (4)x HDMI (HDMI or DVI digital source)
    Output (8)x HDMI (To 8x Destinations)
    (1)x HDMI (Preview output:Signal as output #1 simultaneously)
    Switch Controls 1x Select & Function buttons on front panel
    (Data status via LED panel readout)
    1x IR Remote Controller (switch control)
    1x IR External port (switch control via 3.5mm OD Jack)
    1x Ethernet serial interface (RJ-45 8p8c female socket)
    1x RS-232 series interface (switch control)
    Source Status Input status LEDs indicates presence of a live signal
    (19) Function Control Keys 1.ALL, 2.OFF, 3.RECALL, 4.ENTER, 5.MEMORY,
    6.LOCK,  7.EDID, 8.Destination button (1) thru (8),
    9.Source button (1) thru (4)
    Infrared Frequency 38 Khz
    IR External Distance ~984 feet / 300 meters maximum
    HDMI I/O Connector HDMI Type A - SMD 19" pin Female Type
    Temperature Operating Temperature 32°F - 100°F (0°C - 32°C)
    Dimension (WxDxH) 19" x 9.84" x 1.73" (482mm x 250mm x 44mm)
    Rack Mount 1RU High 19 "Rack Mount #1U-440L (with rack mount)
    Power Supply DC12V, 5A, Powr Input : AC 100~240 VAC 50/60Hz
    (universal Type Supply)
    Safety Approvals CE, FCC, REACH
    Weight 3.45 Kg / 7.59 lb
