8X2 Composite Video & VGA to Composite Video Selector Switch
8X2 Composite Video & VGA to Composite Video Selector Switch

Inputs :

8x Group (4x VIDEO, 4x VGA-RGBHV)
Outputs :
2x Group (2x VGA, 2x VIDEO, 2x VGA-RGBHV)
  • Introduction
  • Features
  • Specifications

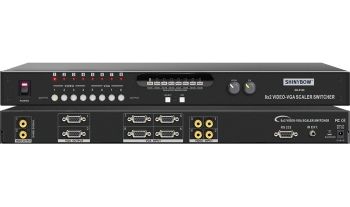

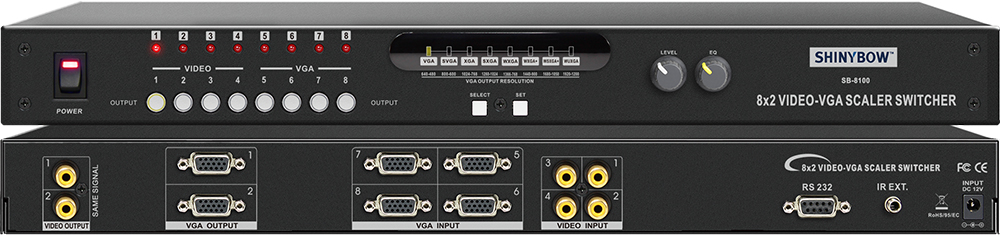

  • The SB-8100 is a 8:2 Routing Switcher featuring 8 inputs and pre-emphasized 2 VGA outputs. There are 4x Composite Video,4x VGA(RGBHV) input ports and 2x VGA identical signal VGA output ports. Support 2x Video Output Preview for four Video input sources. Composite Video auto detection standard TV video format NTSC/ PAL/ SECAM system, and support high definition RGB digital HD signal.  This switcher supports full VGA data rates, which enabling in PC Resolution VGA (640x480), SVGA(800x600), XGA(1024x768), SVGA(1280x1024), WXGA(1366x768), WXGA+(1440x900), WSXGA(1680x1050), WUXGA(1920x1200 HD).  Therefore, it is ideally suitable for high Definition LCD TV, HDTV, Full HD television, Plasma display or Monitor applications. Control is provided via Front pressed buttons with LED readout or IR remote controller.  A RS232 interface is provided for interfacing with third party control. A windows-based control software package is included to provide completely control of the SB-8100 from a PC.
    8x2 Composite Video & VGA to Composite Video & VGA Selector Switch
  • 1. Support 8 inputs to 2 outputs VGA Routing Switcher
    2. Inputs : 4x Composite Video, 4x VGA(RGBHV)
      Outputs : 2x VGA(RGBHV), 2x Video Preview from Video 1,2,3 & 4 inputs
    3. Automatic detection of input TV standards Composite Video NTSC-M 3.58, NTSC-J 4.43
      PAL, PAL-N, PAL-N Comb-N, PAL-M system
    4. Automatically scan 8 input video sources by LED display on front panel
    5. Direct Video and VGA Input & VGA Resolution selections
    6. Automatically 3D Motion Adaptive de-interlacing SD up to HD
    7. Support both of Down Scaling and Up Scaling
    8. Adjust VGA output level & HV value by VR on front panel
    9. Two PC-VGA(RGBHV) outputs for same signals
    10. Supports two Video outputs for previewing video from input 1, 2, 3 & 4 sources
    11. Support RS232 interface control driver for Win 95/98/2000/XP
    12. An IR transceiver on the front panel by infrared remote control and an IR extension port on the
      rear panel that can extend distance about 300Mt.
    13. Support desktop with ear mount and 19 inch rack mountable type panel
